1015 1007 Stranded MTW/TEW Flame Retardant 1-28AWG Tinned Copper Ele

Description

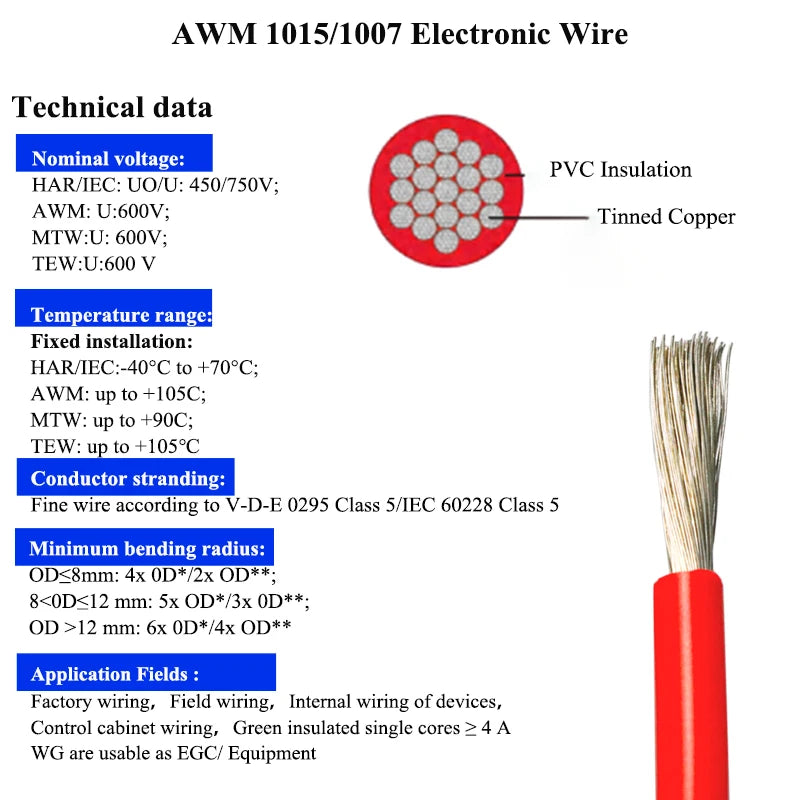

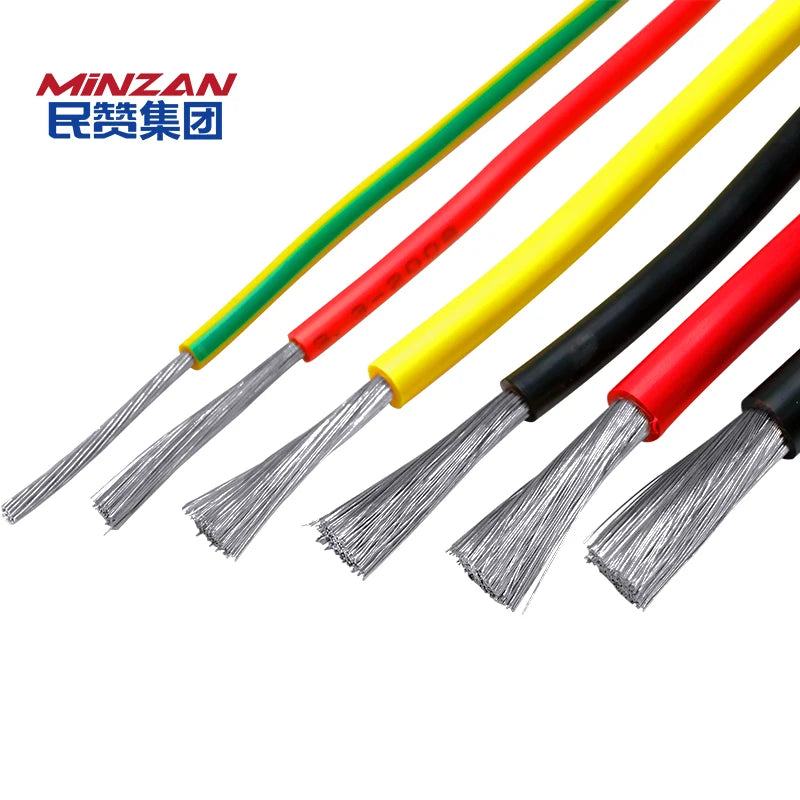

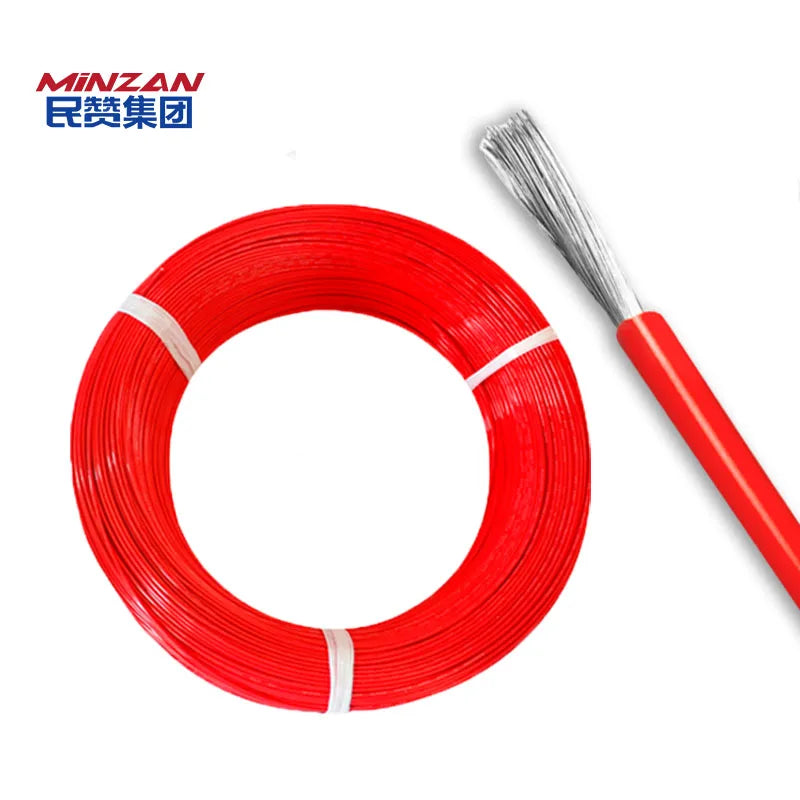

1015 1007 Stranded MTW/TEW Flame Retardant 1-28AWG Tinned Copper Electronic Wire PVC Coated Electrical Wire

Conductor Material	Tinned Copper

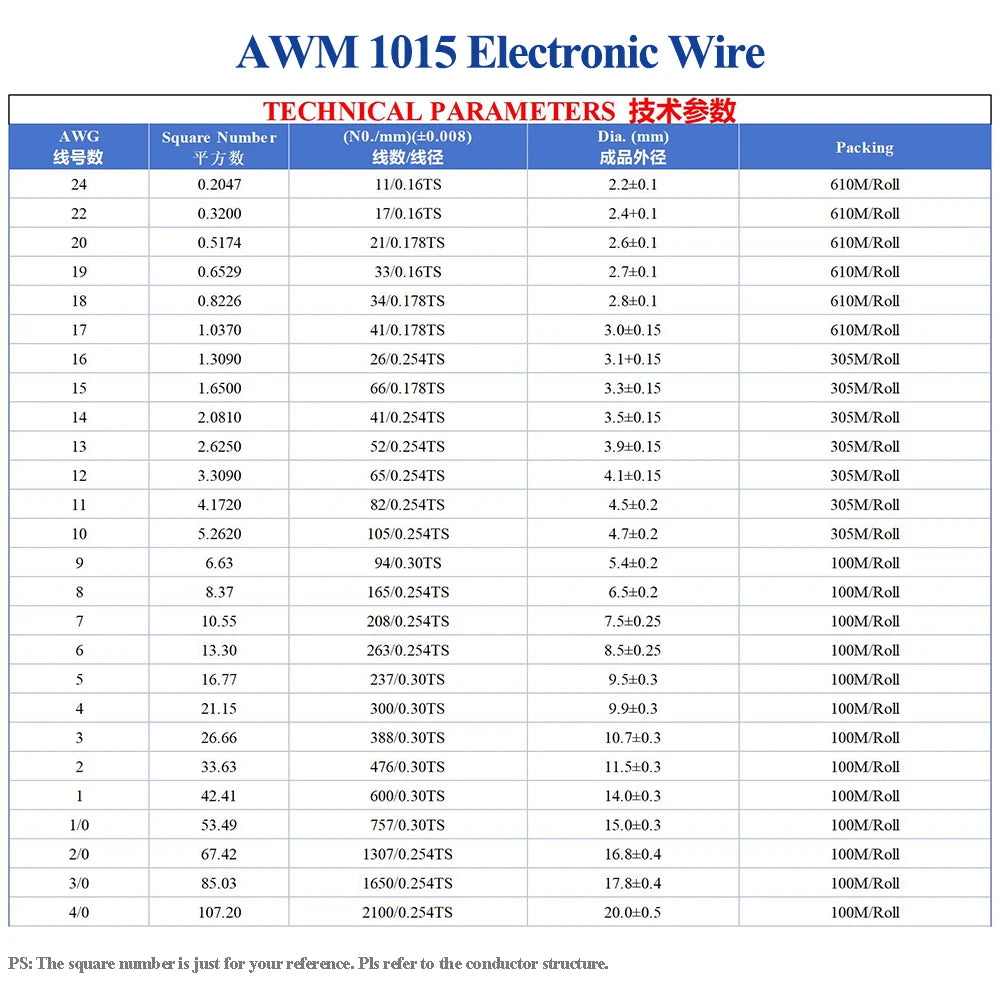

Diameter	12 AWG, 20 AWG, 22 AWG, 24 AWG, 8 AWG, 14 AWG, 16 AWG, 18 AWG, 6 AWG, 4 AWG, 1 AWG, 2 AWG, 10 AWG, 26awg, 28awg
Insulation Material	PVC
Rated Voltage	1015: 600V / 1007: 300V, 1015: 600V / 1007: 300V
Model Number	1015 17-24 AWG
Brand Name	Minzan
Place of Origin	Guangdong, China
Application	Electronic,Electricla Equipment Internal Wiring
Conductor Type	Stranded
Shape	Round
Single Wire Size	NIL
Working Temperature	1015: 105℃ / 1007: 80℃
Type	Insulated
Product name	AWM1015 1007 H07V-K RV VW-1 80C/105C 600V/300V Electronic Wire
Insulation	PVC Insulation Cable
Conductor	Tinned copper Core
Certification	CCC CE RoHS ISO9001
MOQ	17-26awg: 610m/Roll ;10-16awg:305m/Roll ; 9-4/0awg: 100m/Roll
Rated Temperature	1015: 105℃ / 1007: 80℃
Specification	4/0AWG -24AWG
Feature	resistant to acids, oils, alkalies, moisture,abrasion
Sample	Freely Sample

Minimum order: 100 meter
Package size: 15X15X25 cm; Gross weight: 1.51 kg
Alibaba category: Electrical Equipment & Supplies > Wires, Cables & Cable Assemblies > Electrical Wires
